2835 Chip White SMD LED 9V 18V 36V Warm / Nature / Cool White Wide Viewing Angle

DL-TOP2835W65-9V .pdf
DL-TOP2835W65-18V .pdf
DL-TOP2835W65-36V .pdf
Outdoor Or Indoor 2835 Chip White Smd Led 3V 6V 9V 18V 36V Warm White Nature White Cool White

• Features:

• P-LCC-2 package.
• All voltage available: 3V,6V, 9V, 18V, 36V
• High brightness: 24-26lm,26-28lm,28-30lm,40-45lm,45-50lm,50-55lm,55-60lm,110-120lm,120-130lm.....
• Various power options: 0.2w 0.5w 1w
• warm white,natural white,cool white
• White package.
• Optical indicator.
• Colorless clear window.
• Ideal for backlight and light pipe application.
• Inter reflector.
• Wide viewing angle.
• Suitable for automatic placement equipment.
• Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.

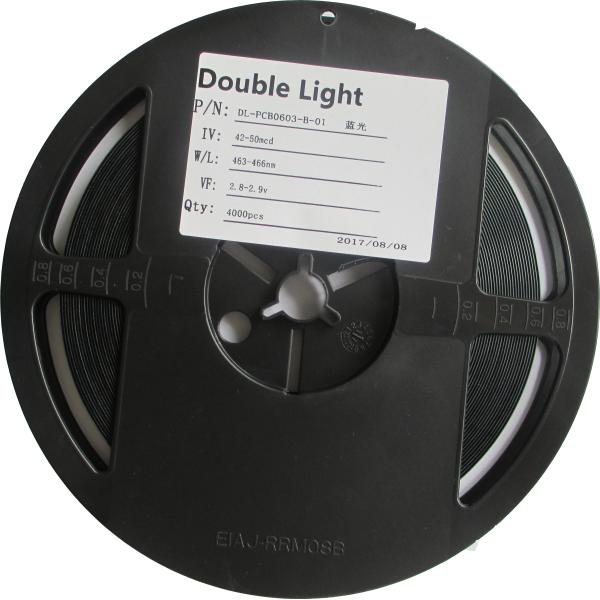

• Available on tape and reel (8mm Tape).
• The product itself will remain within RoHS compliant Version.

• Descriptions:

• The TOP2835 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

• Applications:

• Automotive: Backlighting in dashboards and switches.
• Telecommunication: Indicator and backlight in telephone and fax
• Indicator and backlight for audio and video equipment.
• Indicator and backlight in office and family equipment.
• Flat backlight for LCD’s, switches and symbols.
• Light pipe application.
• General use.

​

• Absolute Maximum Ratings at Ta=25℃

• Electrical Optical Characteristics at Ta=25℃

Notes:

• Luminous Intensity Measurement allowance is ± 10%.
• θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
• It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
